Superchargers are pressure-boosting devices (compressors) that raise the air’s pressure before allowing it to enter the cylinder of an internal combustion engine. The technique of boosting the pressure or putting more air into the engine is called “supercharging.” It is performed. Increasing the air charge density from the turbo just before it enters the cylinder is the most fundamental way to increase the amount of air forced into the engine. Because of the lower air density at high elevations and hill stations, the engine’s performance suffers at these locations. Therefore, superchargers must compensate for the power loss that engines and vehicles experience at higher altitudes.
In their most basic form, superchargers are compressors or blowers that take air at normal ambient pressure, compress it, and then aggressively push it into the engine. The engine is connected to the compressor and blower by a belt drive, which transmits the power. The increase in the average quantity of air and fuel mixture introduced into the cylinder contributes to a rise in the mean adequate pressure of the engine. The engine will create greater power whenever there is an increase in the MEP. The engine becomes more efficient as a result of the addition of a compressor to the system.

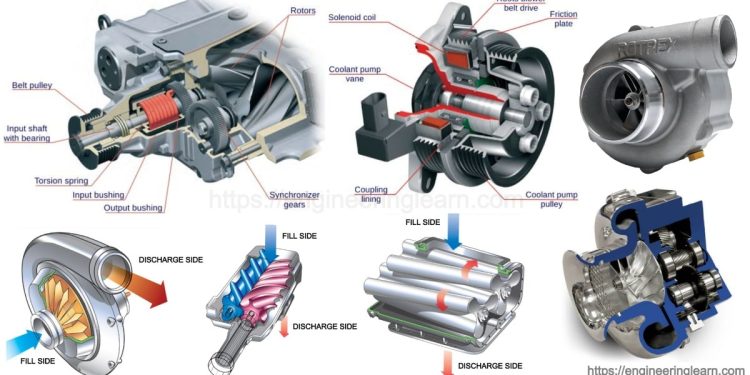

Different Kinds Of Superchargers
Centrifugal superchargers are a prevalent kind of supercharger, and they are driven by the vehicle’s engine using a belt-and-pulley arrangement. The centre of the impeller is where the air-fuel combination is introduced. After that, the air is sent via a diffuser, which results in a rise in pressure. At long last, the air can pass through the case of the volute and into the engine.
The superchargers of the Root’s kind each have two rotors in the form of an epicycloid. The rotors are mounted and keyed on two separate shafts and are inter-meshed to ensure they are the same size throughout. Any particular shaft receives power from the engine by either a V-belt or a gear train. Depending on the requirements, the number of lobes on each rotor may range from two to more than two. The inlet lets the air in but is blocked from escaping through the exit. Consequently, the pressure at the outflow would be higher than at the intake.
Supercharger Of The Vane Type
On the supercharger’s drum are several vanes installed in various positions. These springs are already compressed to their full length before being used to extend these vanes. A Roots and Screw supercharger has a longer life and produces consistent power. The use of centrifugal superchargers is often recommended for use at low speeds.
The Following Are Some Benefits Of Supercharging
- More excellent production of electricity. The purpose of researching and putting in place superchargers was to achieve this result.
- Decreased the amount of smoke produced by exhaust gases. The introduction of more air aids the combustion process in the cylinder, reducing the amount of smoke produced.
- The acceleration of the vehicle was made more rapid. The supercharger immediately begins its operation the moment the engine is started. Because of this, the engine receives a boost right from the outset, which results in faster acceleration.
- A lower overall cost than a turbocharger.
- Greater torque output over the whole speed range.
Large marine engines and turbo chargers often use this strategy as their primary approach. When it comes to air compression, the underside of the piston is used. Because there are two delivery strokes for every suction stroke, this system can provide an appropriate supply of compressed air when the timing of the valves is appropriately adjusted.
